Productdetails:
|
Productstatus: | Voorraad | Naam van het product: | HPE Z4 G5 Tower Workstation |
---|---|---|---|
Processor/CPU: | Intel Xeon W3-2423 | Parameter van de processor: | 2.1 GHz tot en met 4.2 GHz 6core 12thread |
Geheugen/RAM: | 16 GB DDR5 ECC | Geheugengroeven: | 8 DIMM tot 4800 MT/s. |
Harde schijf/HDD: | 1T NVMe M.2 SSD | Chipset: | Intel W790 |
Vormfactor: | Toren | Afmetingen: | 31.4 x 57,2 x 56,3 cm (verpakking) |
Gewicht: | 10.5 kg | Haven: | alle haven |
Technische specificatie | HP Z4 G5 Workstation Desktop PC |
Beschikbare besturingssystemen | Windows 11 Pro voor werkstations Ubuntu 22.04 LTS Linux® Gereed Red Hat® Enterprise Linux® |
Beschikbare verwerkers | Intel® Xeon® W7-2495X (2,5 GHz basisfrequentie, tot 4,6 GHz met Intel® Turbo Boost Technology, 45 MB L3 cache, 24 cores, 48threads) Intel® Xeon® W7-2475X (2,6 GHz basisfrequentie, tot 4,6 GHz met Intel® Turbo Boost Technology, 37,5 MB L3 cache, 20 cores, 40 threads) Intel® Xeon® W5-2465X (3,1 GHz basisfrequentie, tot 4,5 GHz met Intel® Turbo Boost Technology, 33,75 MB L3 cache, 16 cores, 32 threads) Intel® Xeon® W5-2455X (3,2 GHz basisfrequentie, tot 4,4 GHz met Intel® Turbo Boost Technology, 30 MB L3 cache, 12 cores, 24 threads) Intel® Xeon® W5-2445 (3.1 GHz basisfrequentie, tot 4,4 GHz met Intel® Turbo Boost Technology, 26,25 MB L3 cache, 10 cores, 20 threads) Intel® Xeon® W3-2435 (3,1 GHz basisfrequentie, tot 4,3 GHz met Intel® Turbo Boost Technologie, 22,5 MB L3 cache, 8 kernen, 16 threads) Intel® Xeon® W3-2425 (3.0 GHz basisfrequentie, tot 4,2 GHz met Intel® Turbo Boost Technology,15 MB L3 cache, 6 cores, 12 threads) Intel® Xeon® W3-2423 (2,1 GHz basisfrequentie, tot 4,0 GHz met Intel® Turbo Boost Technology, 15 MB L3 cache, 6 cores, 12 threads) |
Chipset | Intel® W790 |
Maximaal geheugen | 512 GB DDR5-4800 ECC SDRAM Transfersnelheden tot 4800 MT/s. |
Geheugenslotten | 8 DIMM |
Interne opslag | 1 TB tot 12 TB 7200 tpm SATA Enterprise HDD 512 GB tot 2 TB HP Z Turbo Drive NVMeTM M.2 SSD 512 GB tot 4 TB HP Z Turbo Drive PCIe® SSD M.2 512 GB tot 4 TB HP Z Turbo Drive PCIe® SED Opal 2 M.2 SSD 512 GB tot 4 TB HP Z Turbo Drive Dual Pro PCIe® SSD 512 GB tot 4 TB HP Z Turbo Drive Quad Pro PCIe® SSD |
Optische aandrijving | HP Slim DVD-ROM; HP Slim Blu-ray Writer; HP Slim DVD-Writer |
Beschikbare afbeeldingen | Ultra High-End: NVIDIA RTXTM A6000 (48 GB GDDR6 toegewijd) NVIDIA RTXTM A5000 (24 GB GDDR6 toegewijd) AMD RadeonTM Pro W6800 (32 GB GDDR6 toegewijd) NVIDIA RTXTM 6000 Ada Generation (48 GB GDDR6 toegewijd) AMD RadeonTM Pro W7900 (48 GB GDDR6 toegewijd) NVIDIA RTXTM 5000 Ada Generation (32 GB GDDR6 toegewijd) High-End: NVIDIA RTXTM A4500 (20 GB GDDR6 toegewijd) NVIDIA RTXTM A4000 (16 GB GDDR6 toegewijd) NVIDIA® A4000E (16 GB GDDR6 toegewijd) NVIDIA RTXTM A2000 (12 GB GDDR6 toegewijd) NVIDIA RTXTM A2000E (12 GB GDDR6 toegewijd) AMD RadeonTM RX 6700 XT (12 GB GDDR6 toegewijd) NVIDIA RTXTM 4000 Ada Generation (20 GB GDDR6 toegewijd) Middenbereik: NVIDIA® T1000 (8 GB GDDR6 toegewijd) NVIDIA® T1000E (8 GB GDDR6 toegewijd) AMD RadeonTM Pro W6600 (8 GB GDDR6 toegewijd) Invoer: NVIDIA® T1000 (4 GB GDDR6 toegewijd) NVIDIA® T400 (4 GB GDDR6 toegewijd) AMD RadeonTM RX 6400 (4 GB GDDR6 toegewijd) Intel® ArcTMPro A40 (6 GB GDDR6 toegewijd) |
Audio | Realtek ALC3205-CG |
Uitbreidingsslotten | 1 PCIe 5 x16; 2 PCIe 4 x16; 2 PCIe 4 x4 (Toegang tot het achterste afschermingsschot kan via alle gleufpunten worden verkregen, maar 2 PCIe 4 x8 zijn uitsluitend voor interne toegang voor M.2- Ja. |
Ports en aansluitingen | Voorzijde (Premium-versie): 2 SuperSpeed USB Type-C® 20Gbps signaal snelheid (USB Power Delivery); 2 SuperSpeed USB Type-A 5Gbps signaal snelheid; 1 combinatie hoofdtelefoon/microfoon; voorzijde: 4 USB Type-A 5Gbps signaalvermogen; 1 combinatie koptelefoon/microfoon; Achter: 1 RJ-45; 1 audio-in/out; Optionele poorten: 2 ThunderboltTM 4 met USB Type-C® 40Gbps signaalvermogen (USB Power Delivery, DisplayPortTM 1.4) |
Kracht | 1125 W interne voeding, tot 90% efficiëntie, actieve PFC; 775 W interne voeding, tot 90% efficiëntie, actieve PFC; 525 W interne voeding, tot 90% efficiëntie,actief PFC525 W interne voeding, tot 90% efficiëntie, actieve PFC; 1125 W interne voeding, tot 90% efficiëntie, actieve PFC; 775 W interne voeding, tot 90% efficiëntie, actieve PFC |

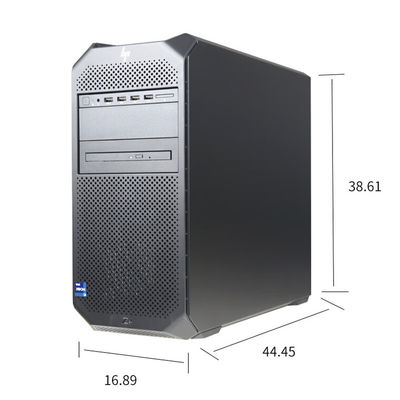

Afmetingen | 6.65 x 17,50 x 15,20 inch; 16,89 x 44,45 x 38,61 cm; 12.36 x 22.52 x 22.17 in 31.4 x 57.2 x 56.3 cm (Package) |
Gewicht | (Exacte gewichten zijn afhankelijk van de configuratie (alleen systeemgewicht)) |
